What is encryption?

Encryption is a method commonly used in IT to protect data from unauthorized access. To do this, algorithms turn the data from a readable into a non-readable format. The information is now only accessible to those who possess the keys needed to decrypt the data.

Myra Services on this topic: Automated management of SSL/TLS certificates powered by Myra Certificate Management
Code on a screen

01

A definition of encryption

The term encryption is commonly used to describe techniques that are intended to protect information from unauthorized access. Since ancient times, various methods have been used to transform readable content—known as plaintext—into a non-readable form. The complexity of encryption methods has been successively increasing ever since. Today’s cryptographic methods protect data with the aid of computers using very long key lengths, complex mathematical tasks, and sophisticated key exchange procedures. As a vital element of information security, encryption helps to secure electronic communication between people and devices from spying and manipulation.

Security lock

02

What data should be encrypted?

In principle, any type of data can be protected using cryptography. Especially for storing and sharing personal data in the cloud, it is necessary to use encryption software that automatically encrypts the data and its transmission for its users. Various regulations, such as the General Data Protection Regulation (GDPR) or the German IT Security Act (IT-Sicherheitsgesetz), require companies to ensure the security and authenticity of digital content. Depending on the extent of a data breach, serious fines may be imposed for violations. For example, data protection violations are punishable by fines of up to €20 million or up to 4% of annual global sales, depending on which is higher.

This is the data you need to protect:

  • Personal data

  • Confidential business data

  • Intellectual property

  • Customer data

  • Annual reports

  • Product release documents

  • Research and development data

  • Login information on the web

  • Chats/emails

03

How is data encrypted?

Just as relevant as the type of data protected by encryption is the question of when to use encryption. The encrypted transfer of data on the internet has gained considerable momentum since Snowden’s revelations in 2013. Most commercial websites and internet services now use HTTPS encryption to secure communications. This common practice makes it difficult for attackers to capture data while in transit.

Encryption is also used to store data when it is not being actively used. This enables companies to protect their data from unauthorized access in a data center, for instance.

End-to-end encryption offers complete encryption over the entire communication path. This technology aims to ensure that only authorized senders and recipients are able to access the data. Even the provider of end-to-end encrypted services is unable to read the information arriving on its servers. For this reason, end-to-end encryption is particularly well suited for securing digital communications such as chats and emails.

04

Why is data encrypted?

Companies, banks, and government agencies can reduce the likelihood of a data breach by implementing seamless encryption. The processing of personal data in particular involves a certain degree of risk, as cyber attacks can never be completely ruled out. Encryption is considered a prime means of not only keeping such sensitive data safe on storage media or in archives, but also protecting it while in transit.

Industry-specific regulations define the content that must be encrypted and even the cryptographic processes that must be used for this purpose. According to Article 32 (1) of the General Data Protection Regulation, for example, the controller is required to take appropriate technical and organizational measures to secure personal data. In the process, companies must also take the current state of the art into account.

05

What types of encryption are there?

In very basic terms, encryption methods can be divided into two categories: symmetric and asymmetric encryption. In practice, the two categories are not mutually exclusive per se. On the contrary, developers often use hybrid methods to combine the strengths of both methods.

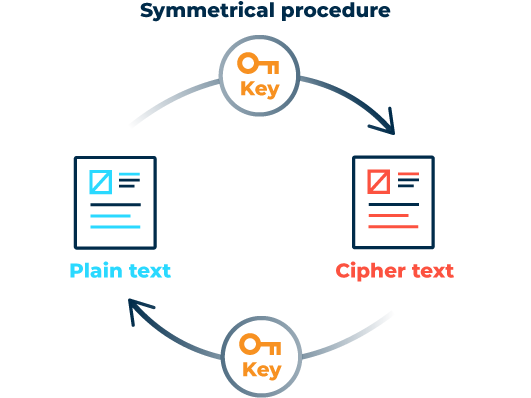

Symmetric methods

Here, encryption and decryption are performed using the same key. This means that both sender and receiver agree on and exchange the secret key before using it. A prominent example: The Caesar cipher, which the Roman commander bearing the same name is said to have used for his military correspondence, also uses only one cipher (key) and is therefore a symmetric method. For encryption, the letters of the alphabet are cyclically shifted to the right by a specific (secret) value. Decryption requires the opposite process by the same value.

While classic symmetric encryption methods work at the letter level to convert plaintext into encrypted text, ciphering in computer-aided cryptography methods takes place at the bit level. A distinction is made between stream ciphers and block ciphers.

Stream cipher

Each bit is associated with one bit of the keystream.

Block cipher

The bits being encrypted are grouped into blocks of fixed length and mapped to a fixed-length ciphertext.

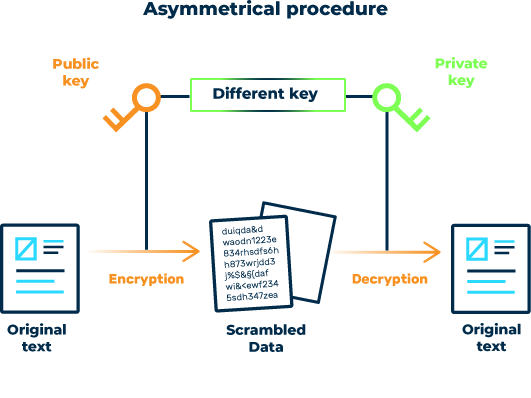

Asymmetric methods

These cryptographic methods use a pair of keys for each participant: a public key and a private key. While the public key, as its name suggests, is accessible to everyone, the private key remains secret. The sender uses the recipient’s public key for encryption, while the recipient uses his private key for decryption. The asymmetry results from the fact that data encrypted with the public key can only be decrypted with the secret private key of the key pair. RSA is the most well-known asymmetric method.

Hybrid methods

The data itself is encrypted using a symmetrical procedure. However, to increase security, an asymmetric procedure is used for the key exchange.

06

What are the advantages and disadvantages of asymmetric and symmetric encryption?

Of course, there are advantages and disadvantages to the various encryption methods – so it is important to carefully evaluate which encryption best meets the specific security requirement.

Functionality symmetric method

Symmetric methods

Pro:
  • Due to the comparatively short key length, symmetric methods usually perform better.

Contra:
  • Only one key is used for both encryption and decryption, entailing a security risk: when two people exchange an encrypted message, both must have the same key—for this reason, a protected channel is required to securely share the key.

  • The number of keys related to the number of participants grows quadratically.

Functionality of asymmetric Methods

Asymmetric methods

Pro:
  • High security factor

  • There is an electronic signature option

  • Asymmetric methods allow for a wide range of applications (e.g., email traffic as well as cryptographic protocols such as SSL/TLS).

  • Perfectly suited for open multi-user environments

Contra:
  • Under certain circumstances slower than symmetric variants due to longer key length

  • Greater effort required for use

  • The private key is not recoverable

07

What encryption standards are there?

A number of years have gone by since the first cryptography methods were introduced—encryption options today are characterized by high-tech. Here are some of the most important solutions that definitively need to be mentioned in this context:

Data Encryption Standard (DES)

The widely used symmetric-key algorithm Data Encryption Standard (DES) was developed by IBM in cooperation with the National Security Agency (NSA) in 1975. The objective of the developers was to create a standard for inter-agency encryption that was as secure as it was uniform. Today, DES is not considered sufficiently secure for many applications due to its short key length of only 56 bits. However, the key length can be increased with relative ease through multiple applications. Referred to as triple DES, or TDES, 3DES, or DESede, DES continues to be widely used for banking services.

Twofish

Twofish is a symmetric-key algorithm with key lengths of 128, 192, or 256 bits that has been in use since 1998 as the successor to Blowfish, which is also still in use. Twofish is not patented and has been released into the public domain. It is thus freely available to anyone for use.







RSA

RSA is an asymmetric method that can be used for both encryption and digital signatures. It was originally developed in 1977/78 by Ron Rivest, Adi Shamir, and Leonard Adleman at MIT. Its security is based on the mathematical problem of breaking down a large number into its individual prime factors. Since RSA is at least a factor of 1,000 times slower than encryption methods such as 3DES and AES, in practice this method is generally only used to exchange a key. Encryption of the actual data requiring protection, on the other hand, is performed symmetrically to ensure the greatest possible performance.

Advanced Encryption Standard (AES)

The Advanced Encryption Standard (AES) is considered the successor to DES and was published as a new standard by the National Institute of Standards and Technology (NIST) in 2000. The names of the three AES variants AES-128, AES-192, and AES-256 each refer to the selected key length. AES offers a very high level of security; it was not until more than ten years after its standardization that the first theoretical vulnerability was found, although this is of no relevance in practice. The algorithm is freely available and may be used without licensing fees as well as implemented in software and hardware. In the U.S., AES-192 and AES-256 are officially approved for government documents of the highest classification level.

08

Practical application scenarios

Encryption is an integral part of many digital solutions of our time. In particular, cryptography is used to protect communication on the internet from unauthorized access. Some application scenarios:

S/MIME

Secure/Multipurpose Internet Mail Extensions (S/MIME for short) is a standard method for encrypting and signing emails that is used primarily by companies. It enables companies to ensure both the integrity of the transmitted information and the identity of the sender. S/MIME uses hybrid encryption, in which the contents of the email are protected by symmetric encryption, while the key exchange is handled by an asymmetric method. S/MIME also relies on a hierarchical certificate system to authenticate public keys. To do this, companies and private users obtain the certificates they need for generating keys from central certificate authorities. Different classes of certificates are available depending on the level of authentication, and some certificate authorities also offer free certificates for private use.

PGP

Pretty Good Privacy (PGP for short), the tool developed by Phil Zimmermann, is also used to encrypt and sign emails. It follows a similar approach to S/MIME, but is primarily used for private purposes. Unlike S/MIME, with PGP trusted third parties “certify” the required keys—there are no central authorities in the “web of trust” made up of PGP users. For this reason, PGP and its free forks OpenPGP and GnuPG are also preferred by the open source community for securing emails.

KeePass

The open source password manager KeePass is used to manage login details locally on desktop systems. The open source solution uses symmetric encryption methods to secure the password database. Depending on the KeePass version used and user preferences, the AES, Twofish, or ChaCha20 algorithms are used. The encrypted database can only be accessed again by entering the previously defined master password. KeePass is primarily designed for use on Windows; other operating systems are covered by numerous forks of the project, such as KeePassXC, Keepass2Android, or MiniKeePass.

HTTPS

The HTTPS protocol (Hypertext Transfer Protocol Secure) allows the establishment of encrypted connections on the internet. Technically, HTTPS uses conventional connections via HTTP (Hypertext Transfer Protocol) in combination with encryption and authentication via SSL/TLS (Secure Sockets Layer/Transport Layer Security). SSL and its successor TLS secure data traffic as an additional cryptographic layer on the network. In practice, TLS is used almost exclusively today. Nevertheless, the encryption method is stilled referred to as “SSL/TLS” in everyday speech. TLS uses an asymmetric method for key exchange. The encrypted connection itself, on the other hand, uses a symmetrical procedure to avoid any loss of performance. SSL certificates, which site operators obtain from certification authorities, are required for the authentication of servers and domains.

Code on a screen

09

What you need to know about encryption

Encryption is an indispensable part of IT today. A wide variety of encryption algorithms can be used to turn data into a form that cannot be read by unauthorized persons. Only the recipient, who has the necessary digital key, can make the ciphertext accessible and readable again. Particularly in the public sector and for companies it is becoming increasingly important to deal with cryptographic methods, their possible vulnerabilities and benefits—all the more so as official regulations require this in many cases. The most modern and currently most secure cryptography standards include AES, Twofish, and 3DES.
